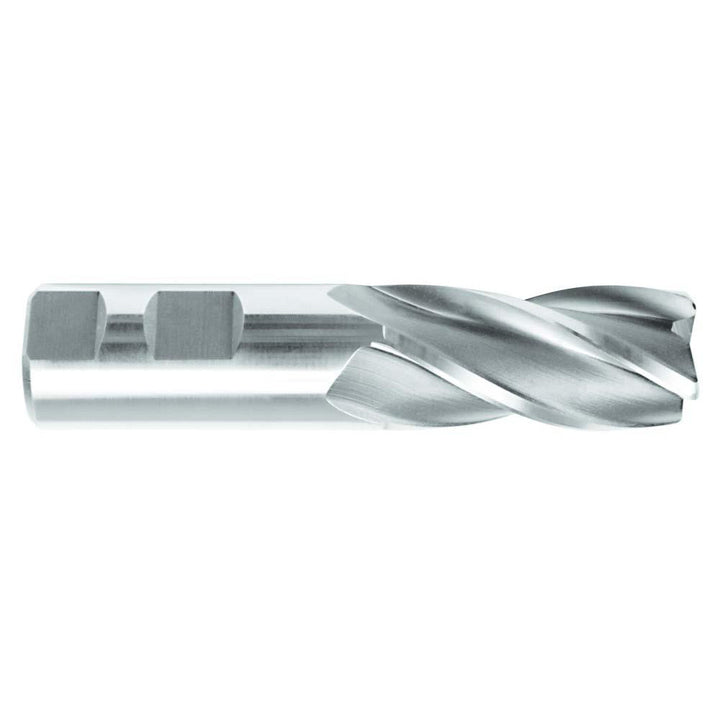

3/4" 4-Flute High Speed Steel Corner Radius End Mill - Melin Tool 15260

Melin Tool

3/4" 4-Flute High Speed Steel Corner Radius End Mill - Melin Tool 15260

MFR# 15260Series CC

$75.92List $94.58 Save 19%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialHigh Speed Steel
CoatingUncoated

Description

The Melin Tool 15260 is a 3/4 4-flute High Speed Steel (M42) corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 1-5/8 length of cut, 3-7/8 overall length. Series CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialHigh Speed Steel
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleMedium
Length of cut in1-5/8
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Material gradeM42
Material removal typeRoughing
Mill diameter in3/4
Mill diameter tolerance-0.0000 to 0.0015 in
Number of flutes4
Overall length in3-7/8
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Shank diameter in3/4
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
