Guhring

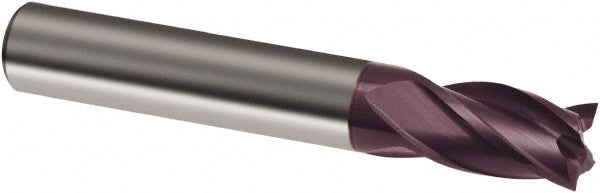

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9030930095200
MFR# 9030930095200Series 3093
$46.19List $59.25
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9030930095200 is a 3/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. 5/8 length of cut, 2 overall length. Series 3093.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeStub
Material gradeProprietary
Mill diameter in3/8
Mill diameter toleranceh10
Number of flutes4
Overall length in2
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
