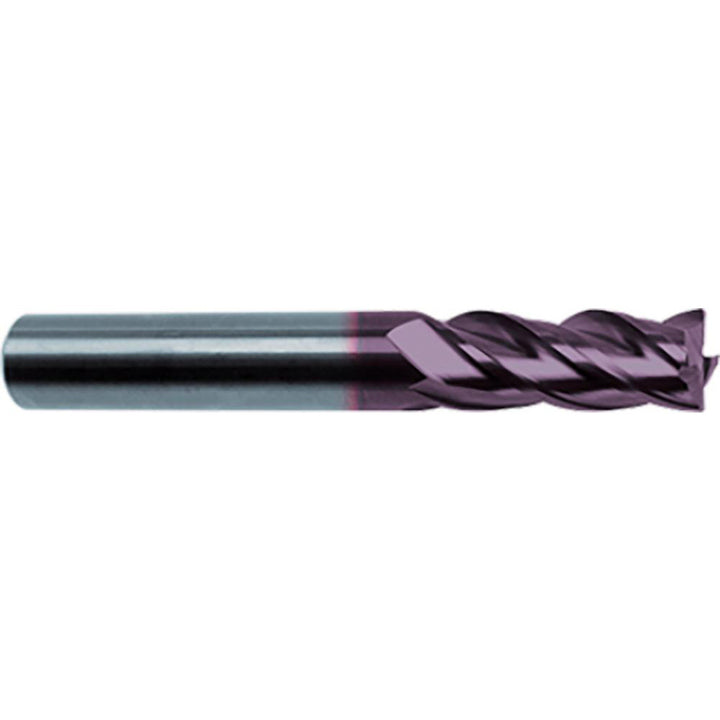

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9030960127000

MFR# 9030960127000Series 3096

$179.50List $230.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Guhring 9030960127000 is a 1/2 4-flute Solid Carbide corner radius & corner chamfer end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, cast iron. 1 length of cut, 3 overall length. Series 3096.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0100

Chamfer width0.0100

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix angle40

Helix styleHigh

Length of cut in1

Length typeRegular

Manufacturers catalog number9030960127000

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter toleranceh10

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Cast Iron

Reach length in1

Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in1/2

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
