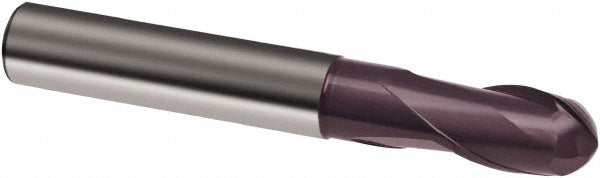

3/16" 2-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031010047600

Guhring

3/16" 2-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031010047600

MFR# 9031010047600Series 3101

$38.25List $48.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide
CoatingFIREX

Description

The Guhring 9031010047600 is a 3/16 2-flute Solid Carbide ball end mill with a FIREX finish for longer tool life. Suited for cast iron. 3/16 length of cut, 2.0000 overall length. Series 3101.

Specifications

ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Helix angle30
Length of cut in3/16
Length typeLong
Mill diameter in3/16
Mill diameter toleranceh10
Nose radius0.0940
Number of flutes2
Overall length2.0000
Primary workpiece materialCast Iron
Reach length in1/2
Shank diameter in3/16
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
