Guhring

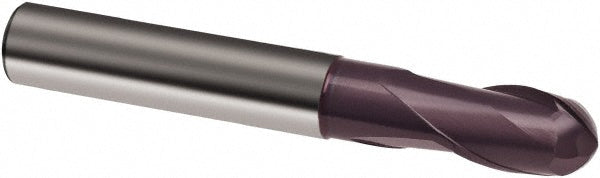

1/4" 2-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031010063500

MFR# 9031010063500Series 3101

$47.43List $60.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031010063500 is a 1/4 2-flute Solid Carbide ball end mill with a FIREX finish for longer tool life. Suited for cast iron. 1/4 length of cut, 2.0000 overall length. Series 3101.

Specifications

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Helix angle30

Length of cut in1/4

Length typeLong

Mill diameter in1/4

Mill diameter toleranceh10

Neck diameter0.2380

Nose radius0.1250

Number of flutes2

Overall length2.0000

Primary workpiece materialCast Iron

Reach length0.6880

Shank diameter in1/4

Shank diameter toleranceh6

Variable helixNo

Variable indexNo
