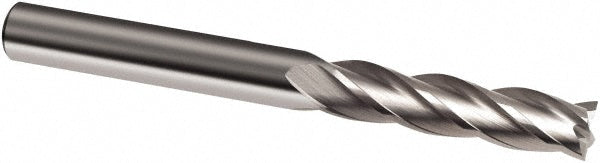

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031510063500

Guhring

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031510063500

MFR# 9031510063500Series 3151

$36.52List $46.02 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Guhring 9031510063500 is a 1/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. 1-5/8 length of cut, 4 overall length. Series 3151.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length typeExtra Long
Material gradeProprietary
Mill diameter in1/4
Mill diameter toleranceh10
Number of flutes4
Overall length in4
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
