Guhring

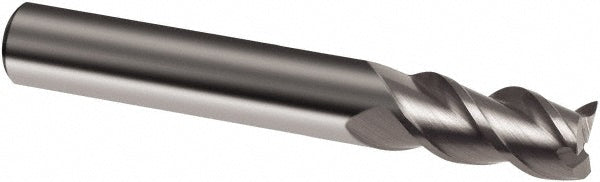

1/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031720031700

MFR# 9031720031700Series 3172

$20.51List $26.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031720031700 is a 1/8 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. 3/8 length of cut, 1-1/2 overall length. Series 3172.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/8

Length typeRegular

Material gradeProprietary

Mill diameter in1/8

Mill diameter toleranceh10

Number of flutes3

Overall length in1-1/2

Primary workpiece materialCast Iron; Stainless Steel; Steel

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
