Guhring

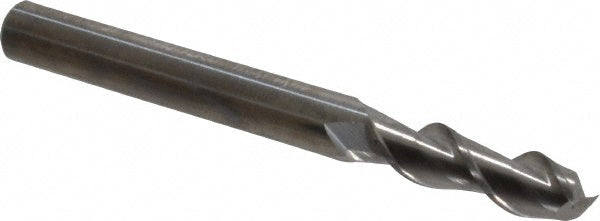

1/4" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031740063500

MFR# 9031740063500Series 3174

$41.79List $53.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031740063500 is a 1/4 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 3/4 length of cut, 2-1/2 overall length. Series 3174.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Length typeRegular

Material gradeProprietary

Mill diameter in1/4

Mill diameter toleranceh10

Number of flutes2

Overall length in2-1/2

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
