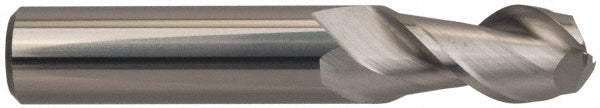

1" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031740254000

Guhring

1" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031740254000

MFR# 9031740254000Series 3174

$427.45List $538.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Guhring 9031740254000 is a 1 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/2 length of cut, 4 overall length. Series 3174.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/2
Length typeRegular
Material gradeProprietary
Mill diameter in1
Number of flutes2
Overall length in4
Shank diameter in1
Single or double endSingle
Variable helixNo
Variable indexNo
