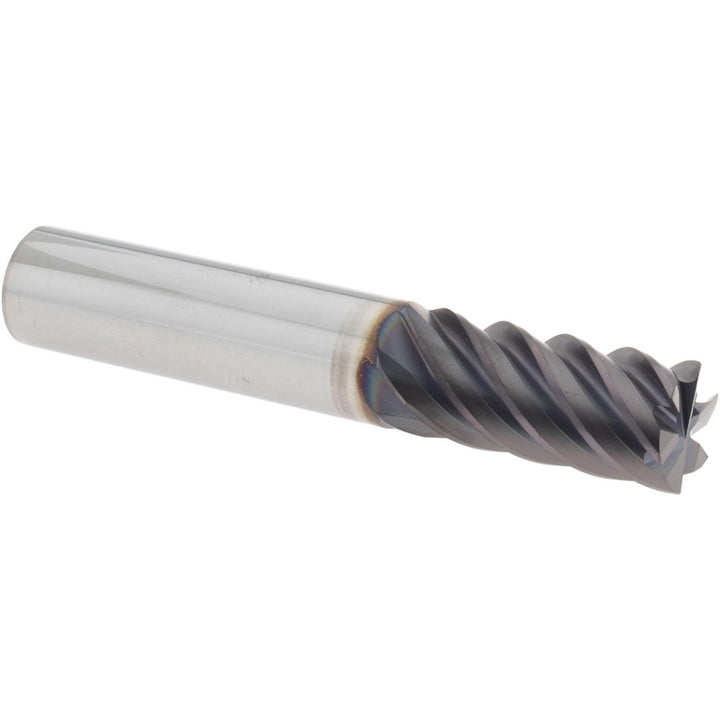

1/2" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9031790127000
MFR# Guhring-9031790127000Cat# 9031790127000Series 3179
$76.24List $96.07
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingTiAlN
Description
The Guhring 9031790127000 is a 1/2 6-flute Solid Carbide (Ultra Fine Micrograin) corner radius & corner chamfer end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series 3179.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0060
Chamfer width0.0060
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in1
Length typeRegular
Manufacturers catalog number9031790127000
Material gradeUltra Fine Micrograin
Material removal typeFinishing
Mill diameter in1/2
Mill diameter toleranceh10
Number of flutes6
Overall length in3
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in1
Secondary workpiece materialNon-Ferrous Metal; Hard Material
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
