0.0394" 2-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9033590010000

Guhring

0.0394" 2-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9033590010000

MFR# 9033590010000Series 3359

$71.28List $89.83 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingFIREX

Description

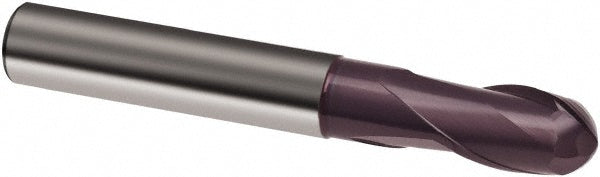

The Guhring 9033590010000 is a 0.0394 2-flute Solid Carbide (Proprietary) ball end mill with a FIREX finish for longer tool life. Suited for cast iron, hard material, steel. Series 3359.

Specifications

ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut (mm)1.50
Length typeRegular
Material gradeProprietary
Mill diameter0.0394
Mill diameter toleranceh8
Number of flutes2
Overall length (mm)38.00
Primary workpiece materialCast Iron; Hard Material; Steel
Reach length (mm)10.00
Shank diameter0.1181
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
