Guhring

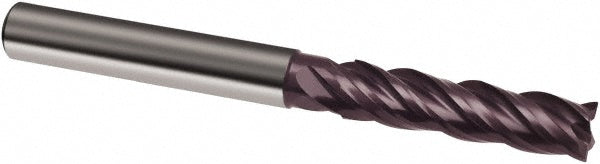

0.3937" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9036270100000

MFR# 9036270100000Series 3627

$138.04List $177.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9036270100000 is a 0.3937 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3627.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut1.5748

Length typeLong

Material gradeProprietary

Mill diameter0.3937

Number of flutes4

Overall length (mm)100.00

Shank diameter0.3937

Single or double endSingle

Variable helixYes

Variable indexNo
