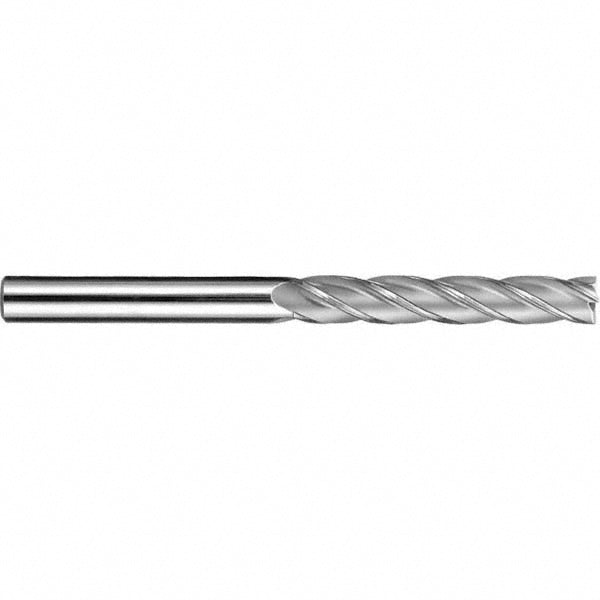

0.3937" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 49419

MFR# 49419Series 1XLM

$74.47List $95.51 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 49419 is a 0.3937 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1.4961 length of cut. Series 1XLM.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut1.4961

Length of cut range1.2500 - 1.5000

Length typeExtra Long

Material gradeMicrograin

Mill diameter0.3937

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)100

Shank diameter0.3937

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
