0.3937" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12239370

M.A. Ford.

0.3937" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12239370

MFR# 12239370Series 122

$100.90List $129.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

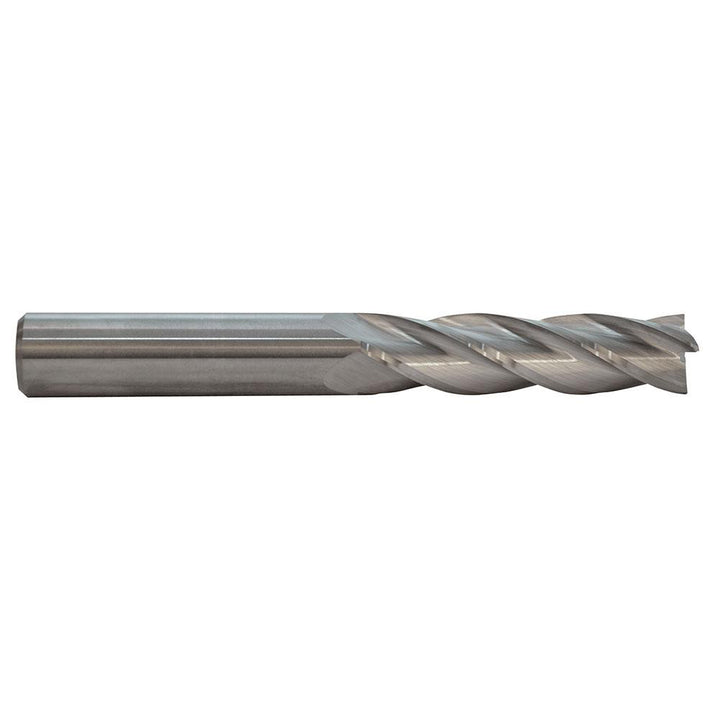

The M.A. Ford. 12239370 is a 0.3937 4-flute Solid Carbide (Micrograin) square end mill. 1.575 length of cut. Series 122.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut1.575
Length of cut range1.5000 - 2.0000
Length typeLong
Material gradeMicrograin
Mill diameter0.3937
Mill diameter tolerance+0.000 to -0.076 mm
Number of flutes4
Overall length (mm)89
Shank diameter0.3937
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
