Guhring

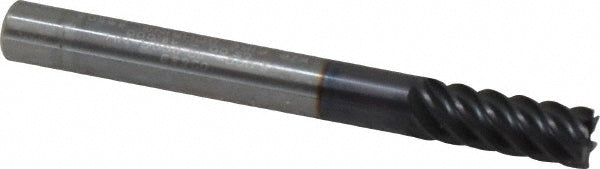

0.2360" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9036890060000

MFR# 9036890060000Series 3689

$60.24List $77.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9036890060000 is a 0.2360 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3689.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut0.5120

Length typeRegular

Material gradeProprietary

Mill diameter0.2360

Mill diameter toleranceh10

Number of flutes6

Overall length (mm)57.00

Reach length (mm)21.00

Secondary workpiece materialHard Material

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
