Guhring

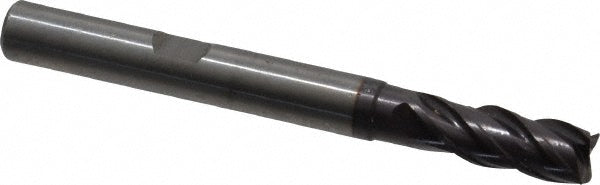

0.2360" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9037320060000
MFR# 9037320060000Series 3732
$52.39List $67.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9037320060000 is a 0.2360 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3732.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35; 38
Length of cut0.5120
Length typeRegular
Material gradeProprietary
Mill diameter0.2360
Number of flutes4
Overall length (mm)57.00
Shank diameter0.2362
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
