Guhring

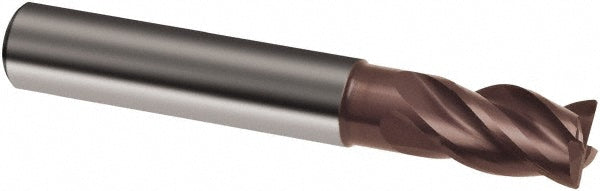

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9038040050000

MFR# 9038040050000Series 3804

$50.13List $64.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9038040050000 is a 0.1969 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Series 3804.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnano-A

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Length of cut0.3543

Length typeStub

Material gradeProprietary

Mill diameter0.1969

Number of flutes4

Overall length (mm)54.00

Reach length (mm)15.00

Shank diameter0.2362

Single or double endSingle

Variable helixYes

Variable indexNo
