Guhring

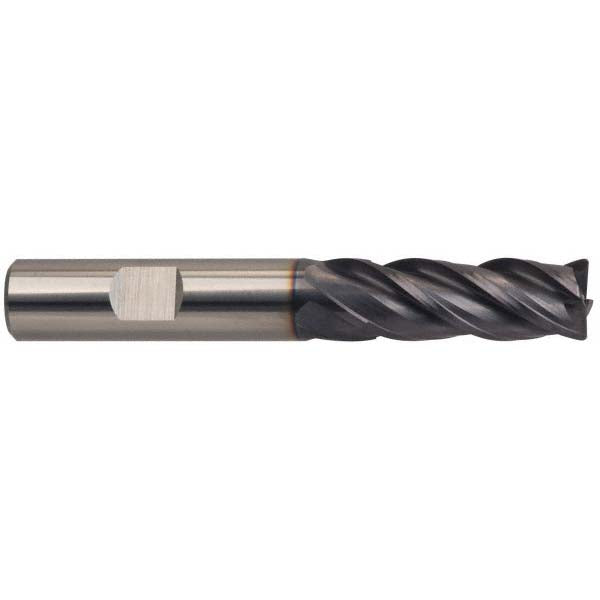

3/8" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760095240

MFR# 9038760095240Series 3876

$88.87List $113.99 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingSuper A

Description

The Guhring 9038760095240 is a 3/8 4-flute Solid Carbide corner radius end mill with a Super A finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 1 length of cut, 2-1/2 overall length. Series 3876.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishSuper A

Coolant throughNo

Corner radius0.0310

Corner radius tolerance-0.05 to 0.05 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in1

Length typeStandard

Material applicationSteel; Cast Iron; Superalloys & Titanium; Stainless Steel; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialStainless Steel; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
