Guhring

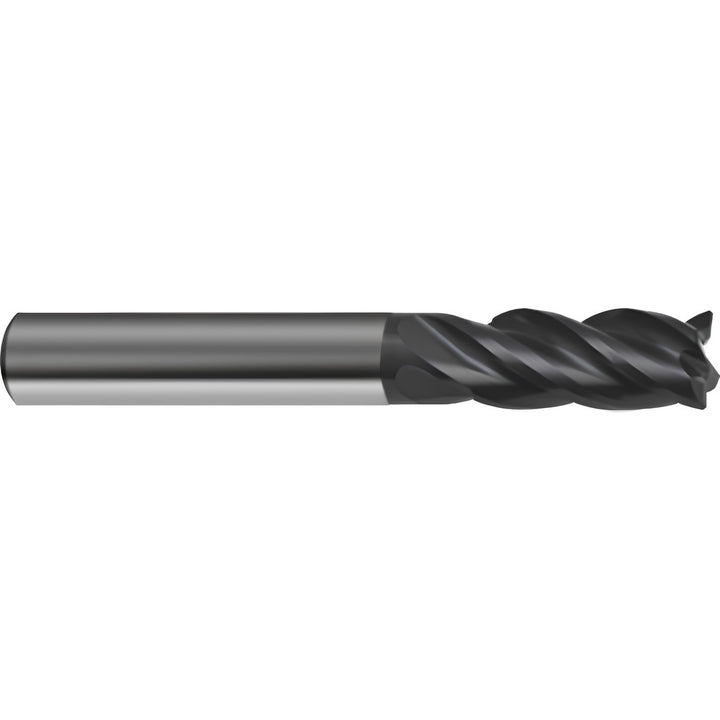

5/8" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760158760

MFR# 9038760158760Series 3876

$272.75List $349.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingSuper A

Description

The Guhring 9038760158760 is a 5/8 4-flute Solid Carbide corner radius end mill with a Super A finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series 3876.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishSuper A

Coolant throughNo

Corner radius0.0620

Corner radius tolerance-0.05 to 0.05 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in1-1/4

Length typeStandard

Material applicationSteel; Cast Iron; Superalloys & Titanium; Stainless Steel; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter toleranceh10

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialStainless Steel; Hard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexYes
