ProMax

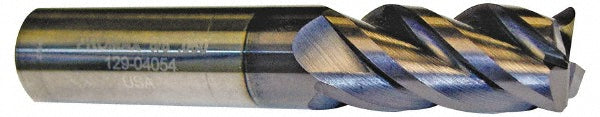

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 129-64014
MFR# 129-64014Series 129
$160.99List $202.89
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 129-64014 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 129.
Specifications
CentercuttingNo
Coating finishAlTiN
Corner radius0.0600
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter in5/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Single or double endSingle
Variable indexNo
