Guhring

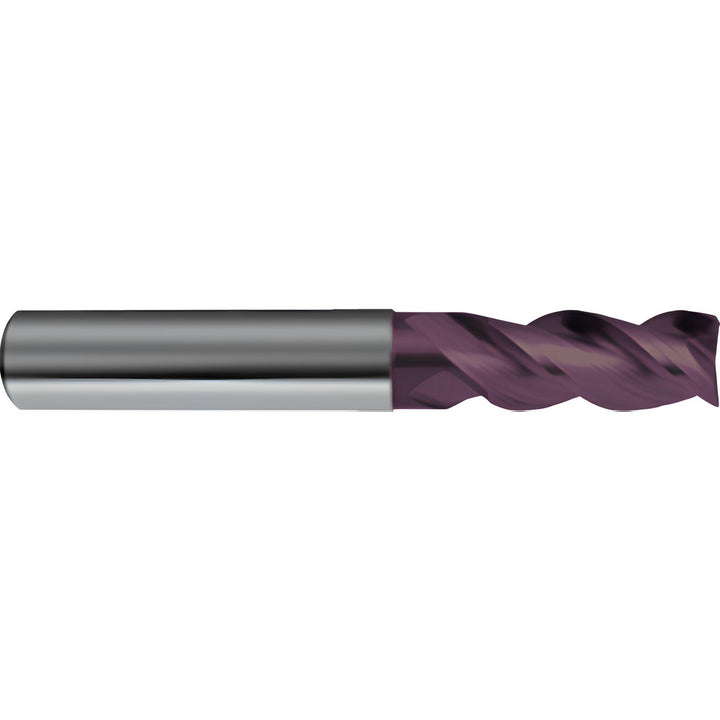

0.1850" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9038910047000
MFR# 9038910047000Series 3891
$36.71List $47.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Guhring 9038910047000 is a 0.1850 3-flute Solid Carbide corner radius & corner chamfer end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. Series 3891.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.05
Chamfer width0.0020
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix styleVariable
Length of cut0.5120
Length typeRegular
Manufacturers catalog number9038910047000
Material removal typeRoughing
Mill diameter0.1850
Mill diameter tolerancee8
Neck diameter (mm)4.50
Number of flutes3
Overall length (mm)57.00
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Reach length0.7090
Secondary workpiece materialCast Iron; Non-Ferrous Metal
Shank diameter (mm)6.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
