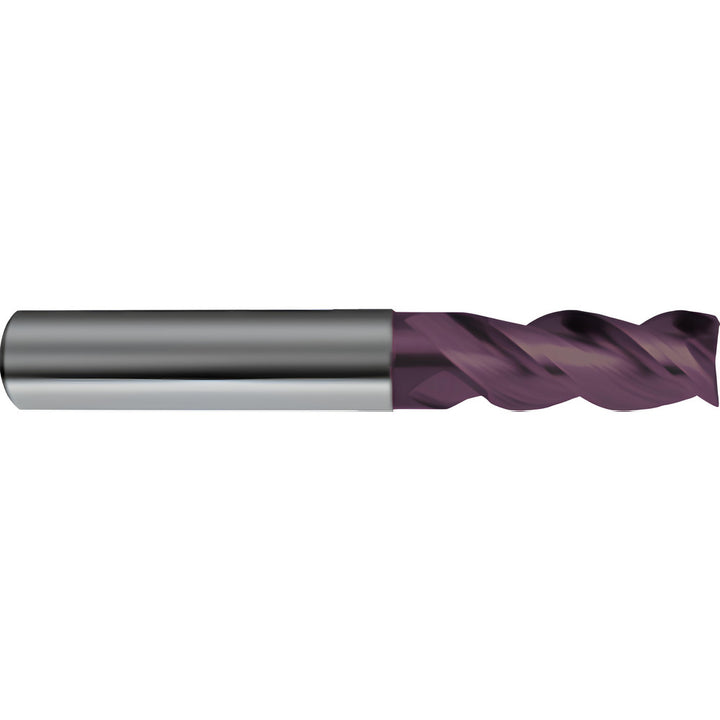

0.2559" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9038910065000

MFR# 9038910065000Series 3891

$56.50List $72.46 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The Guhring 9038910065000 is a 0.2559 3-flute Solid Carbide corner radius & corner chamfer end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. Series 3891.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.10

Chamfer width0.0039

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix styleVariable

Length of cut0.6300

Length typeRegular

Manufacturers catalog number9038910065000

Material removal typeRoughing

Mill diameter0.2559

Mill diameter tolerancee8

Neck diameter (mm)6.20

Number of flutes3

Overall length (mm)63.00

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length0.9610

Secondary workpiece materialCast Iron; Non-Ferrous Metal

Shank diameter (mm)8.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
