Guhring

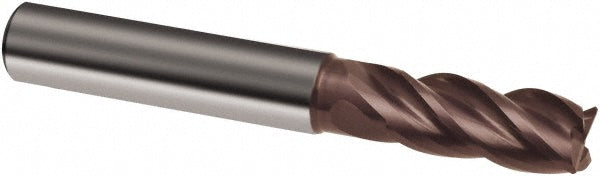

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9042600047600

MFR# 9042600047600Series 4260

$44.67List $57.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9042600047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 5/8 length of cut, 2-1/2 overall length. Series 4260.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnano-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Length of cut in5/8

Length typeLong

Material gradeProprietary

Maximum helix angle38

Mill diameter in3/16

Mill diameter toleranceh10

Minimum helix angle36

Number of flutes4

Overall length in2-1/2

Primary workpiece materialStainless Steel; Steel

Reach length1.0000

Secondary workpiece materialCast Iron

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
