Guhring

3/8" 4-Flute Solid Carbide Ball End Mill, nano-A - Guhring 9042610095200

MFR# 9042610095200Series 4261

$103.81List $133.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

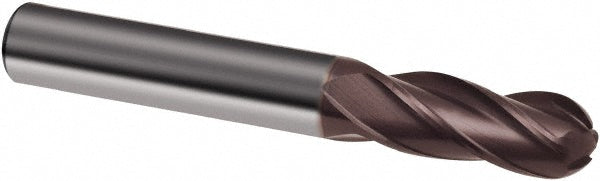

The Guhring 9042610095200 is a 3/8 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 1 length of cut, 2-1/2 overall length. Series 4261.

Specifications

ChipbreakerNo

Coating finishnano-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Helix styleVariable

Length of cut in1

Length typeRegular

Material gradeUltra Fine Grain

Mill diameter in3/8

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

Primary workpiece materialStainless Steel; Steel

Secondary workpiece materialCast Iron

Shank diameter in3/8

Shank diameter toleranceh6

Single or double endSingle

Variable helixYes

Variable indexNo
