Guhring

3/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9042650190500

MFR# 9042650190500Series 4265

$341.77List $438.33 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

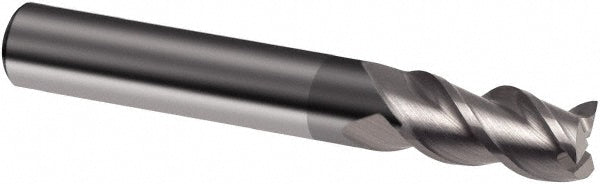

The Guhring 9042650190500 is a 3/4 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/2 length of cut, 4 overall length. Series 4265.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle39; 40; 41

Length of cut in1-1/2

Length typeRegular

Material gradeProprietary

Mill diameter in3/4

Number of flutes3

Overall length in4

Shank diameter in3/4

Single or double endSingle

Variable helixYes

Variable indexNo
