Guhring

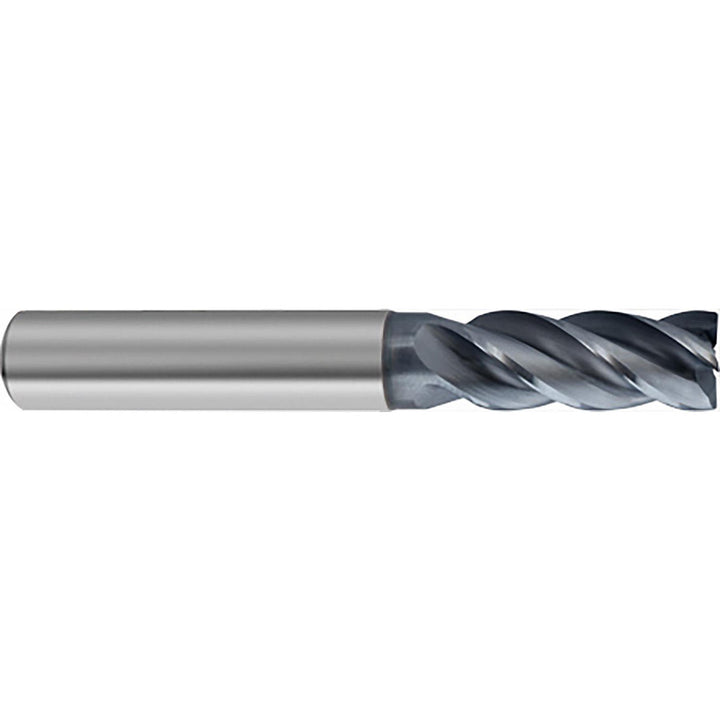

0.0787" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064780020000

MFR# 9064780020000Series 6478

$47.84List $61.36 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Guhring 9064780020000 is a 0.0787 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. Series 6478.

Specifications

CentercuttingYes

Coating finishAlCrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38; 40

Length of cut0.2362

Length typeStandard

Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy

Material gradeProprietary

Mill diameter0.0787

Neck diameter (mm)1.90

Number of flutes4

Overall length (mm)50.00

Reach length (mm)8.00

Shank diameter0.0787

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
