0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064810050000

Guhring

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064810050000

MFR# 9064810050000Series 6481

$68.00List $85.69 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlCrN

Description

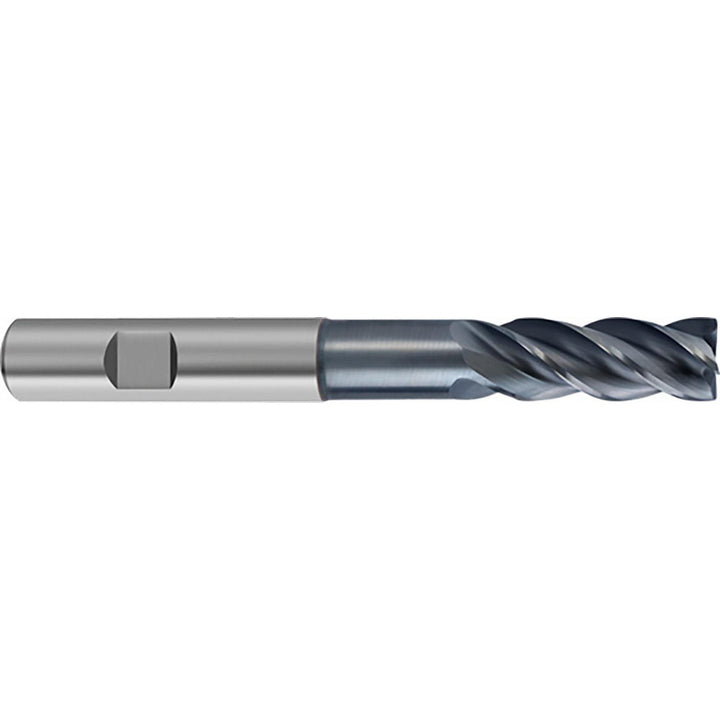

The Guhring 9064810050000 is a 0.1969 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. Series 6481.

Specifications

CentercuttingYes
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle38; 40
Length of cut (mm)15.00
Length typeLong
Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy
Material gradeProprietary
Mill diameter0.1969
Neck diameter (mm)4.70
Number of flutes4
Overall length (mm)65.00
Reach length (mm)28.00
Shank diameter0.1969
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
