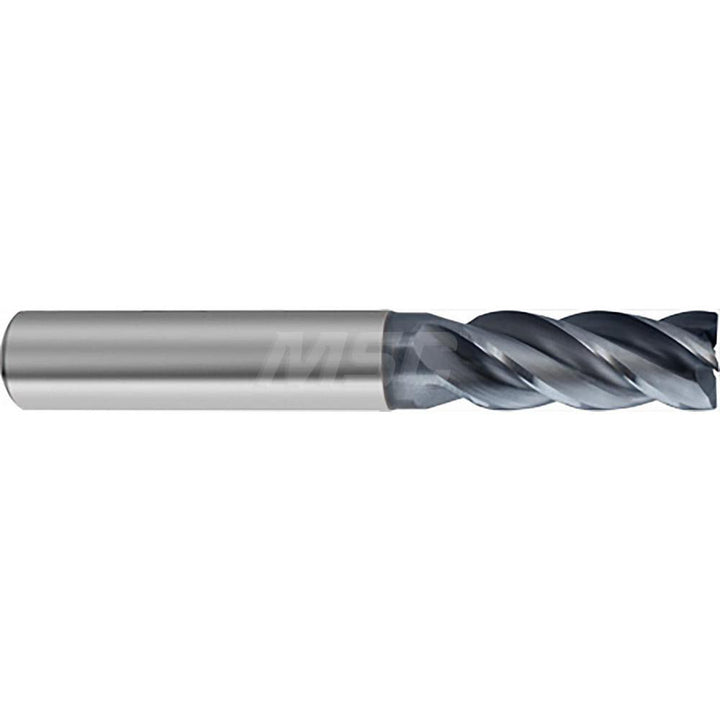

1/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064840031700

Guhring

1/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064840031700

MFR# 9064840031700Series 6484

$35.86List $45.19 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlCrN

Description

The Guhring 9064840031700 is a 1/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. 3/8 length of cut, 2 overall length. Series 6484.

Specifications

CentercuttingYes
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle38; 40
Length of cut in3/8
Length typeStandard
Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy
Material gradeProprietary
Mill diameter in1/8
Neck diameter (mm)2.97
Number of flutes4
Overall length in2
Reach length in1/2
Shank diameter in3/16
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
