Guhring

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064840063500

MFR# 9064840063500Series 6484

$47.06List $60.36 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

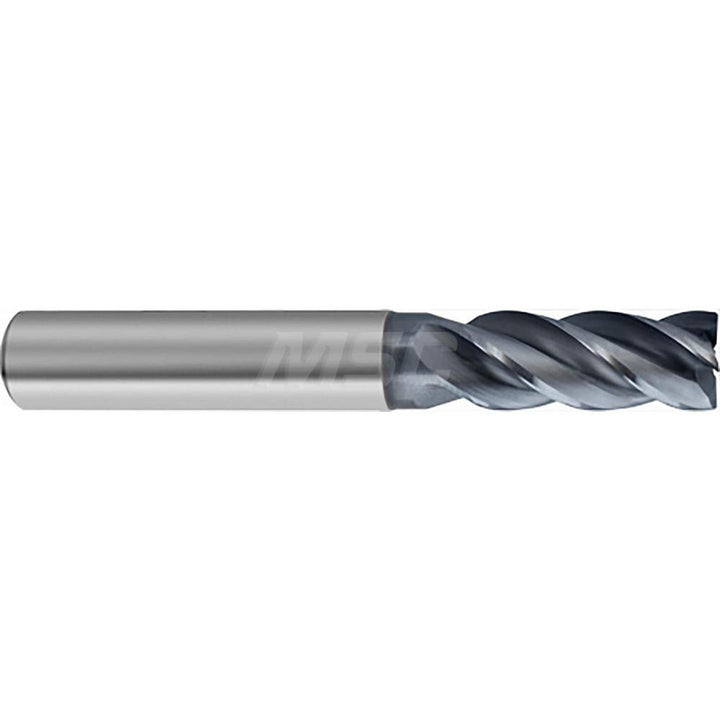

The Guhring 9064840063500 is a 1/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 6484.

Specifications

CentercuttingYes

Coating finishAlCrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38; 40

Length of cut in3/4

Length typeStandard

Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy

Material gradeProprietary

Mill diameter in1/4

Neck diameter (mm)6.05

Number of flutes4

Overall length in2-1/2

Reach length1.0827

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
