Guhring

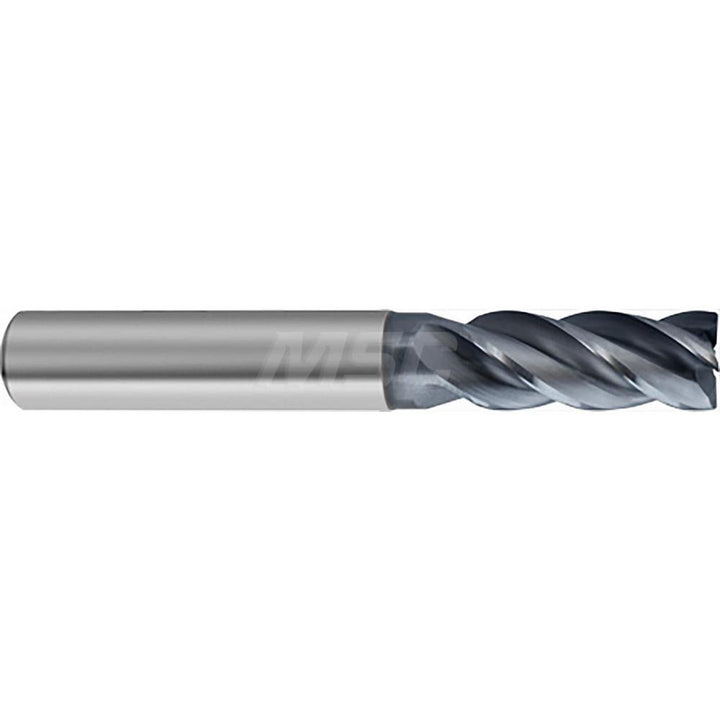

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlCrN - Guhring 9064840190500

MFR# 9064840190500Series 6484

$351.63List $450.99 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Guhring 9064840190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a AlCrN finish for longer tool life. 1-5/8 length of cut, 4 overall length. Series 6484.

Specifications

CentercuttingYes

Coating finishAlCrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38; 40

Length of cut in1-5/8

Length typeStandard

Material applicationHigh-Alloy Steel; Soft Metal; Tough Alloy

Material gradeProprietary

Mill diameter in3/4

Neck diameter (mm)18.54

Number of flutes4

Overall length in4

Reach length1.9291

Shank diameter in3/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
