Guhring

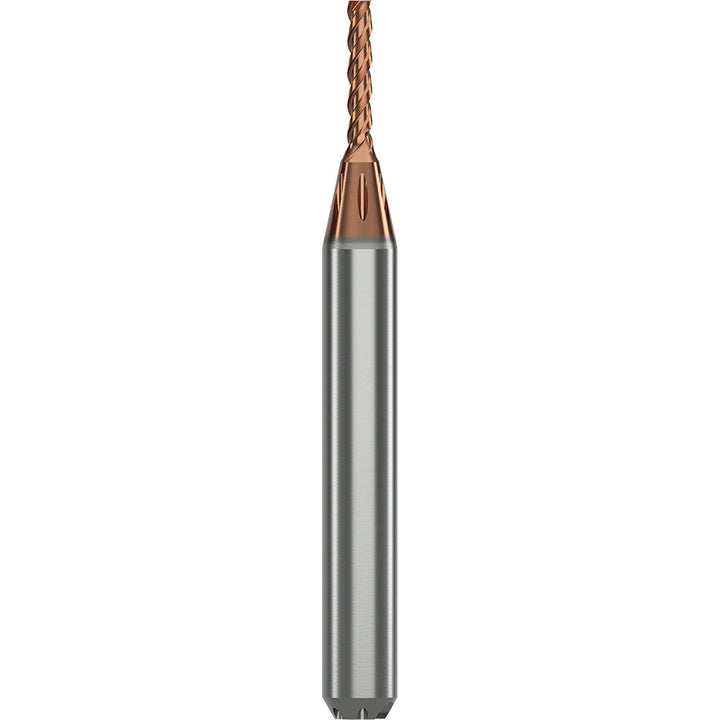

1/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, Durox - Guhring 9068090031750

MFR# 9068090031750Series 6809

$115.77List $148.48 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingDurox

Description

The Guhring 9068090031750 is a 1/8 3-flute Solid Carbide (Ultra Fine Grain) corner radius & corner chamfer end mill with a Durox finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 2-1/4 overall length. Series 6809.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDurox

Coolant throughYes

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut0.6240

Length typeExtra Long

Manufacturers catalog number9068090031750

Material gradeUltra Fine Grain

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter toleranceh8

Number of flutes3

Overall length in2-1/4

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length (mm)25.00

Secondary workpiece materialHard Material

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
