Guhring

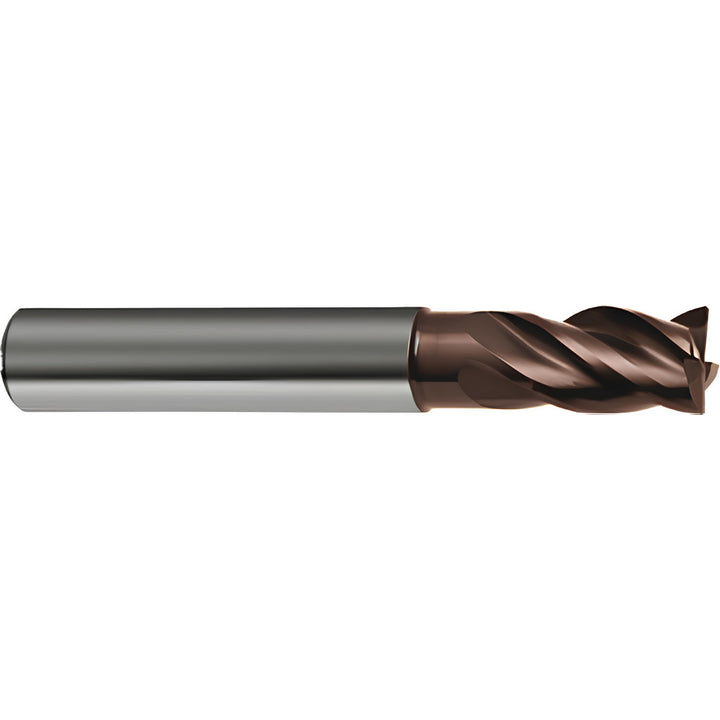

5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9068740079400

MFR# 9068740079400Series 6874

$67.14List $86.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingTiAlSiN

Description

The Guhring 9068740079400 is a 5/16 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1/2 length of cut, 2 overall length. Series 6874.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0030

Chamfer width0.0030

ChipbreakerNo

Coating finishTiAlSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleVariable

Length of cut in1/2

Length typeStub

Manufacturers catalog number9068740079400

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter toleranceh10

Number of flutes4

Overall length in2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1/2

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
