Guhring

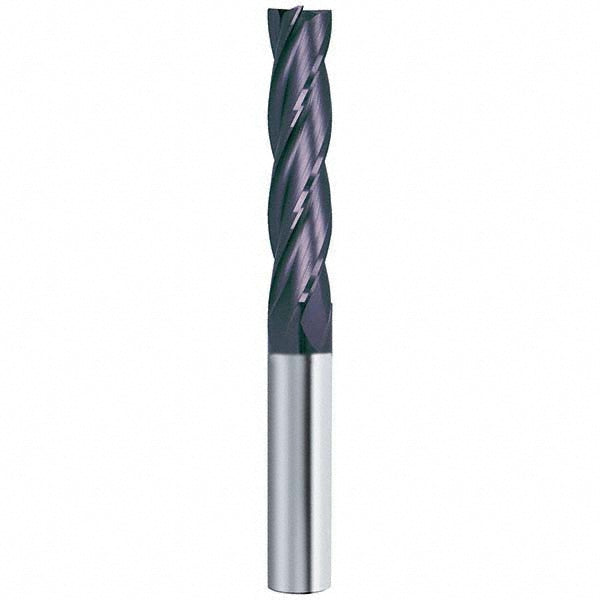

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199570047600

MFR# 9199570047600

$31.48List $40.37 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199570047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 3/4 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in3/4

Length typeLong

Material gradeProprietary

Mill diameter in3/16

Number of flutes4

Overall length in2-1/2

Shank diameter in3/16

Single or double endSingle

Variable helixNo
