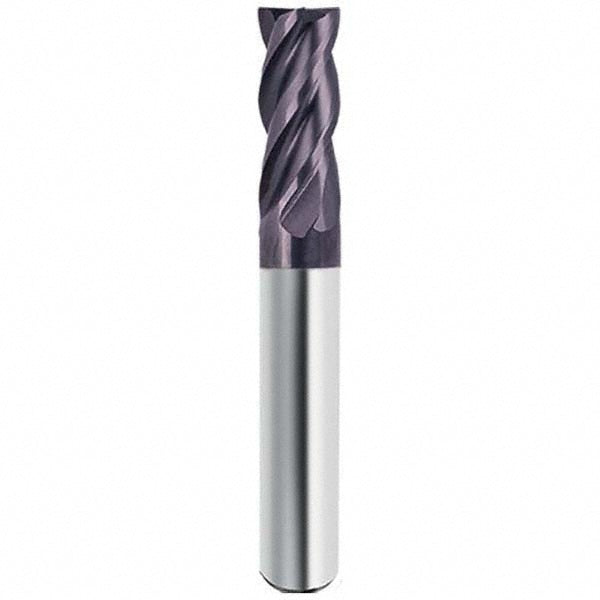

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199590063500

MFR# 9199590063500Series 19959

$31.48List $40.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199590063500 is a 1/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 19959.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle35; 38

Length of cut in3/4

Length typeStandard

Material gradeProprietary

Maximum helix angle38

Mill diameter in1/4

Mill diameter tolerancee8

Minimum helix angle35

Number of flutes4

Overall length in2-1/2

Secondary workpiece materialHard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes
