GWS

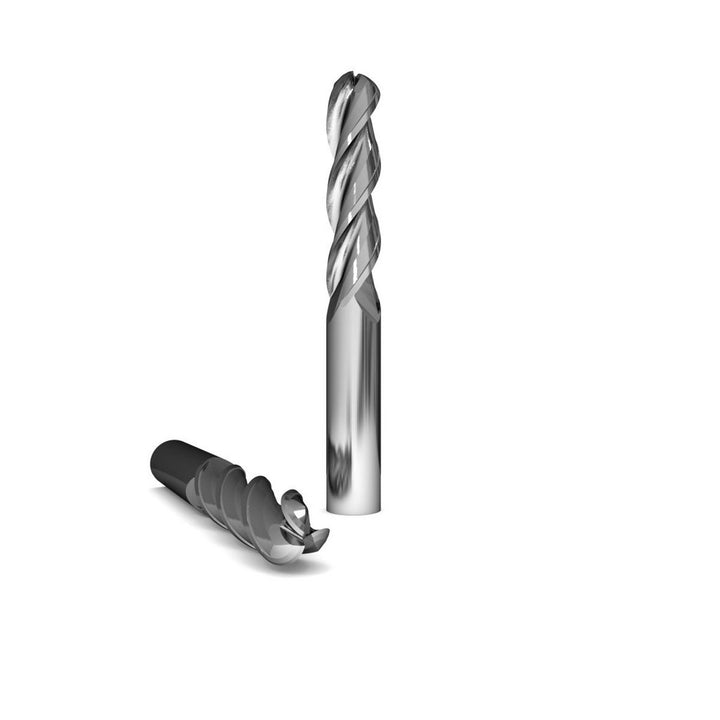

3/8" 3-Flute Solid Carbide Ball End Mill, ZrN - GWS 108717

MFR# 108717Cat# BNAL30375ZSeries 1027; Alumigator

$118.42List $151.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The GWS 108717 is a 3/8 3-flute Solid Carbide ball end mill with a ZrN finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series 1027; Alumigator.

Specifications

Coating finishZrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Helix angle37

Length of cut in1-1/2

Manufacturers catalog numberBNAL30375Z

Mill diameter in3/8

Number of flutes3

Overall length in4

Shank diameter in3/8

Single or double endSingle

Variable helixNo

Variable indexNo
