GWS

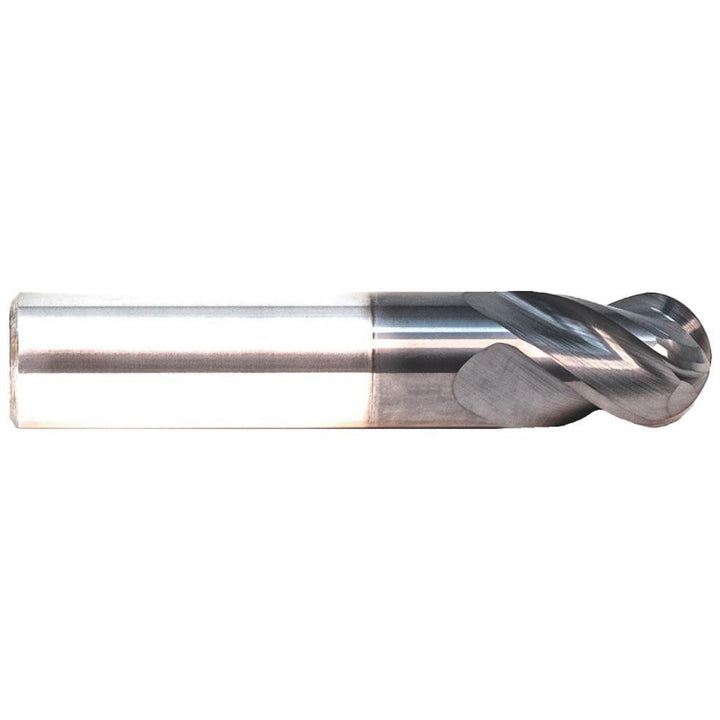

1/4" 4-Flute Solid Carbide Ball End Mill, FX3 - GWS 311179

MFR# 311179Series 2115

$29.92List $38.37 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingFX3

Description

The GWS 311179 is a 1/4 4-flute Solid Carbide (Submicron) ball end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 3/8 length of cut, 2 overall length. Series 2115.

Specifications

ChipbreakerNo

Coating finishFX3

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleVariable

Length of cut in3/8

Length typeStub

Manufacturers catalog number311179

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck length0.0000

Nose radius0.1250

Number of flutes4

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length0.3750

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
