GWS

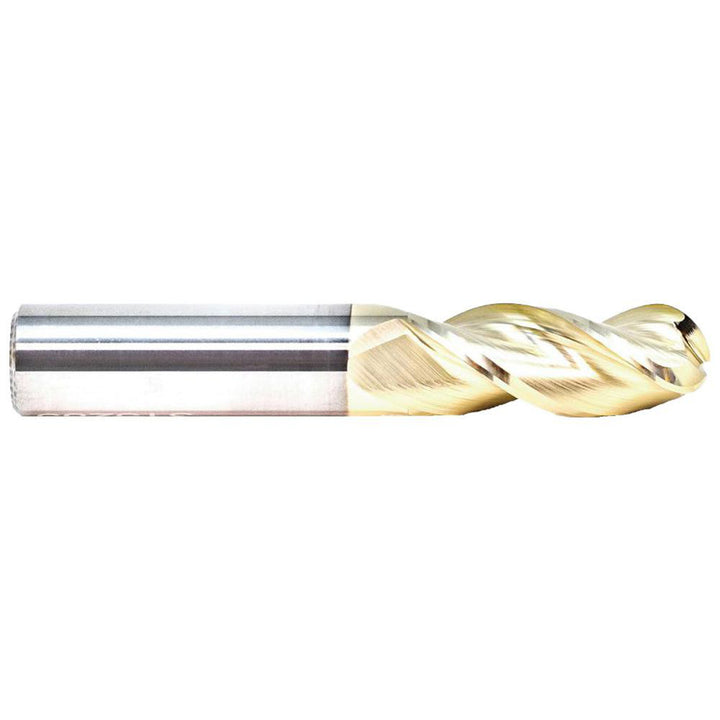

1/4" 3-Flute Solid Carbide Ball End Mill, NF1 - GWS 315221

MFR# 315221Series 2045

$62.49List $80.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingNF1

Description

The GWS 315221 is a 1/4 3-flute Solid Carbide (Submicron) ball end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 2045.

Specifications

ChipbreakerNo

Coating finishNF1

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Helix styleMedium

Length of cut in3/4

Length typeStandard

Manufacturers catalog number315221

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck length0.0000

Nose radius0.1250

Number of flutes3

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Reach length0.7500

Secondary workpiece materialCast Iron; Superalloys & Titanium

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
