GWS

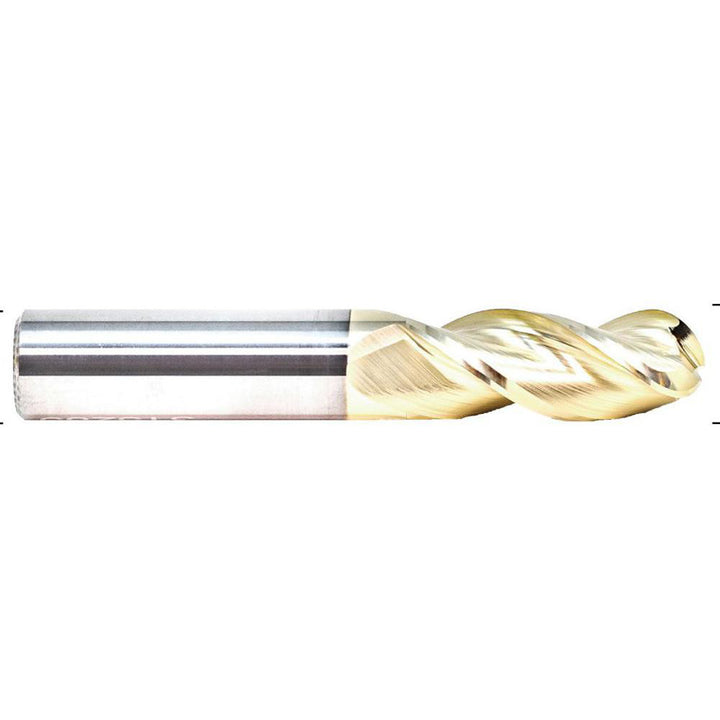

3/4" 3-Flute Solid Carbide Ball End Mill, ZrN - GWS 315322

MFR# 315322Series 2045

$158.51List $203.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The GWS 315322 is a 3/4 3-flute Solid Carbide (Submicron) ball end mill with a NF1 finish for longer tool life. Suited for aluminum & non-ferrous. 1 length of cut, 4 overall length. Series 2045.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coating finish familyZrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Helix styleMedium

Length of cut in1

Length typeStub

Manufacturers catalog number315322

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/4

Neck length0.0000

Nose radius0.3750

Number of flutes3

Overall length in4

Primary workpiece materialAluminum & Non-Ferrous

Reach length1.0000

Secondary workpiece materialCast Iron; High-Temp Alloy

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
