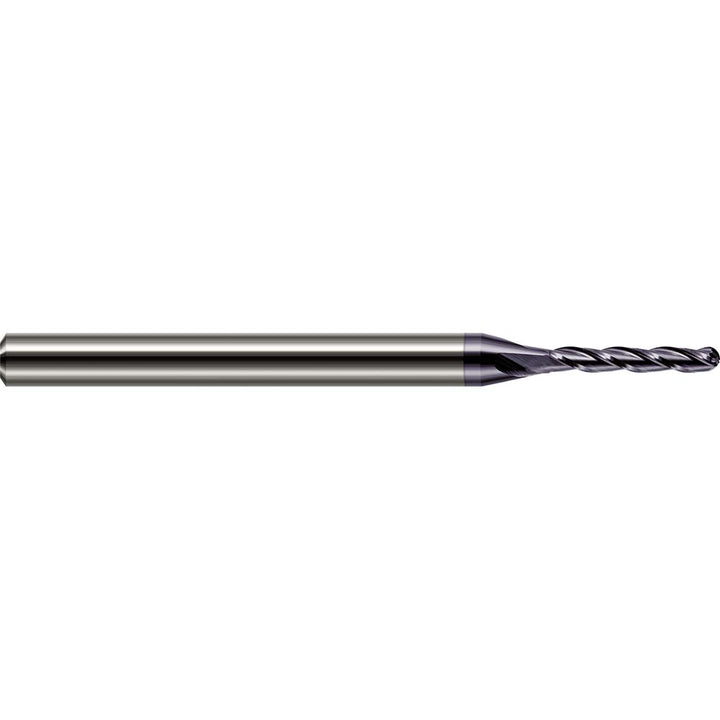

0.0200" 3-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 12820-C3

Harvey Tool

0.0200" 3-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 12820-C3

MFR# 12820-C3Series Miniature End Mills - Ball - Long Flute, Miniature End Mills

$59.35List $68.09 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 12820-C3 is a 0.0200 3-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 0.1000 length of cut, 2-1/2 overall length. Series Miniature End Mills - Ball - Long Flute, Miniature End Mills.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle20
Helix styleVariable
Length of cut0.1000
Length typeLong
Manufacturers catalog number12820-C3
Material gradeCarbide
Material removal typeFinishing
Mill diameter0.0200
Mill diameter tolerance+0.0005/-0.0005 in
Nose radius0.0100
Number of flutes3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length0.1000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixYes
Variable indexNo
