Harvey Tool

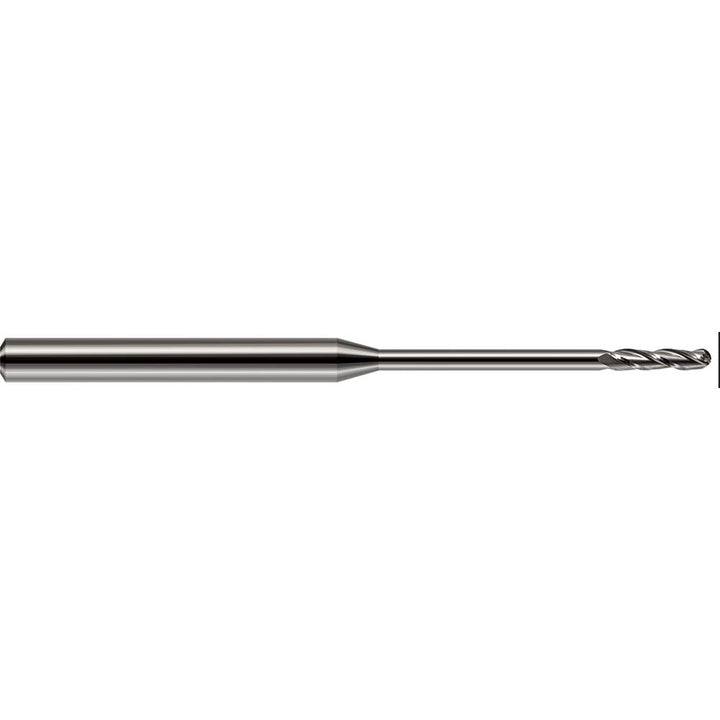

1/16" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 13862

Name: 1/16" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 13862
Brand: Harvey Tool
SKU: 13862
Price: 66.55 USD
Availability: InStock

MFR# 13862Series Miniature End Mills - Ball - Long Reach, Long Flute, Miniature End Mills

$66.55List $76.34 Save 12%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 13862 is a 1/16 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series Miniature End Mills - Ball - Long Reach, Long Flute, Miniature End Mills.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length typeExtra Long

Manufacturers catalog number13862

Material gradeCarbide

Material removal typeFinishing

Mill diameter in1/16

Mill diameter tolerance+0.0005/-0.0005 in

Neck length in1/2

Nose radius0.0310

Number of flutes3

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length in1

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementDecimal Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
