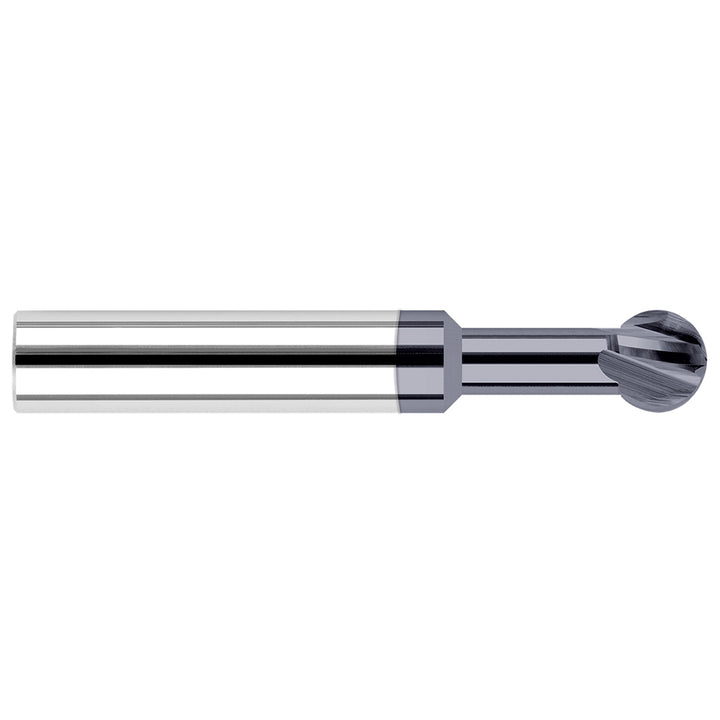

0.1969" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 2955M-C3

Harvey Tool

0.1969" 4-Flute Solid Carbide Undercutting End Mill, AlTiN - Harvey Tool 2955M-C3

MFR# 2955M-C3

$111.27List $129.91 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 2955M-C3 is a 0.1969 4-flute Solid Carbide undercutting end mill with a AlTiN finish for longer tool life. 4 overall length.

Specifications

Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Length of cut0.1670
Mill diameter0.1969
Neck diameter0.1190
Neck length1.0000
Number of flutes4
Overall length in4
Shank diameter in1/4
Single or double endSingle
Variable helixNo
Variable indexNo
Wrap angle degrees270
