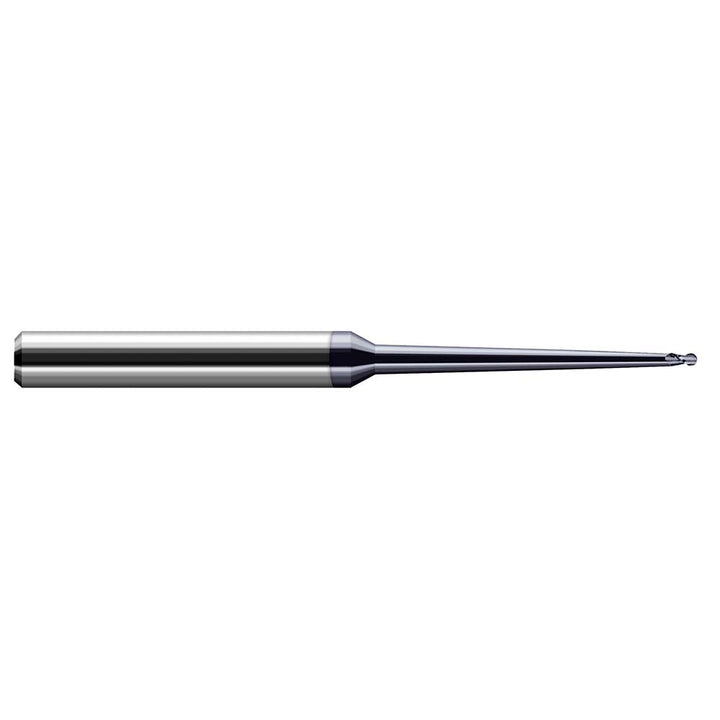

1/16" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 29862-C6

Harvey Tool

1/16" 2-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 29862-C6

MFR# 29862-C6Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills

$68.72List $73.13 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes2
MaterialSolid Carbide
CoatingAlTiN Nano

Description

The Harvey Tool 29862-C6 is a 1/16 2-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 3/32 length of cut, 2-1/2 overall length. Series Miniature End Mills - Ball - Tapered Reach (Clearance Cutters), Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/32
Length typeStub
Manufacturers catalog number29862-C6
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/16
Mill diameter tolerance+0.0000/-0.0010 in
Neck length0.4070
Nose radius0.0310
Number of flutes2
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in1/2
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
