Harvey Tool

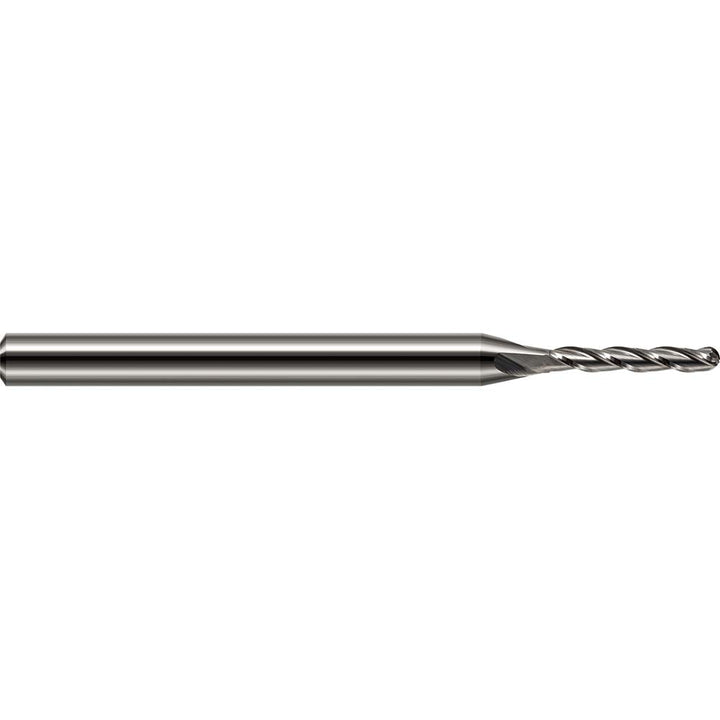

5/64" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 32278

Name: 5/64" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 32278
Brand: Harvey Tool
SKU: 32278
Price: 42.57 USD
Availability: InStock

MFR# 32278Series Miniature End Mills - Ball - Long Flute, Miniature End Mills

$42.57List $48.84 Save 12%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/64

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 32278 is a 5/64 3-flute Solid Carbide (Carbide) ball end mill. Suited for hard material. 13/32 length of cut, 2-1/2 overall length. Series Miniature End Mills - Ball - Long Flute, Miniature End Mills.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle20

Helix styleVariable

Length of cut in13/32

Length typeLong

Manufacturers catalog number32278

Material gradeCarbide

Material removal typeFinishing

Mill diameter in5/64

Mill diameter tolerance+0.0005/-0.0005 in

Nose radius0.0390

Number of flutes3

Overall length in2-1/2

Primary workpiece materialHard Material

Reach length in13/32

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo
