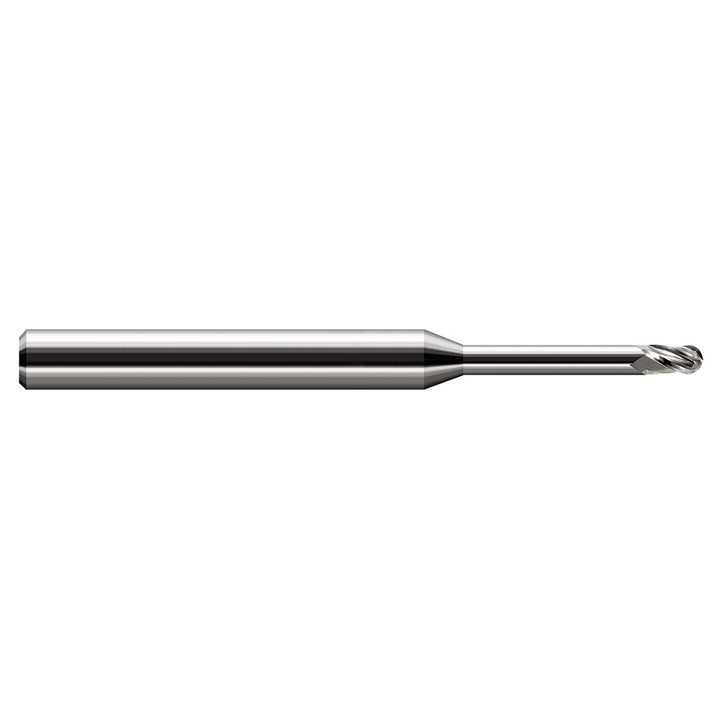

3/16" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 34312

Name: 3/16" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 34312
Brand: Harvey Tool
SKU: 34312
Price: 67.50 USD
Availability: InStock

MFR# 34312Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills

$67.50List $77.44 Save 12%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 34312 is a 3/16 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 9/32 length of cut, 3 overall length. Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in9/32

Length typeStub

Manufacturers catalog number34312

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Neck length in1-7/32

Nose radius0.0938

Number of flutes3

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length in1-1/2

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
