Harvey Tool

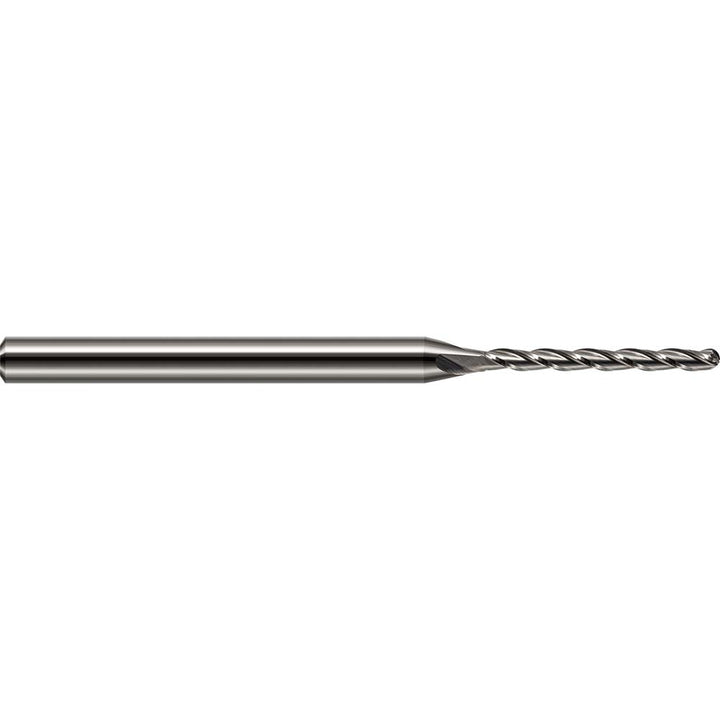

1/16" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 36062

Name: 1/16" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 36062
Brand: Harvey Tool
SKU: 36062
Price: 89.89 USD
Availability: LimitedAvailability

MFR# 36062Series Miniature End Mills - Ball - Long Flute, Miniature End Mills

$89.89List $95.68 Save 6%

Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 36062 is a 1/16 3-flute Solid Carbide (Carbide) ball end mill. Suited for hard material. 2-1/2 overall length. Series Miniature End Mills - Ball - Long Flute, Miniature End Mills.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle20

Helix styleVariable

Length typeExtra Long

Manufacturers catalog number36062

Material gradeCarbide

Material removal typeFinishing

Mill diameter in1/16

Mill diameter tolerance+0.0005/-0.0005 in

Nose radius0.0310

Number of flutes3

Overall length in2-1/2

Primary workpiece materialHard Material

Reach length0.9500

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementDecimal Inch

Variable helixYes

Variable indexNo
