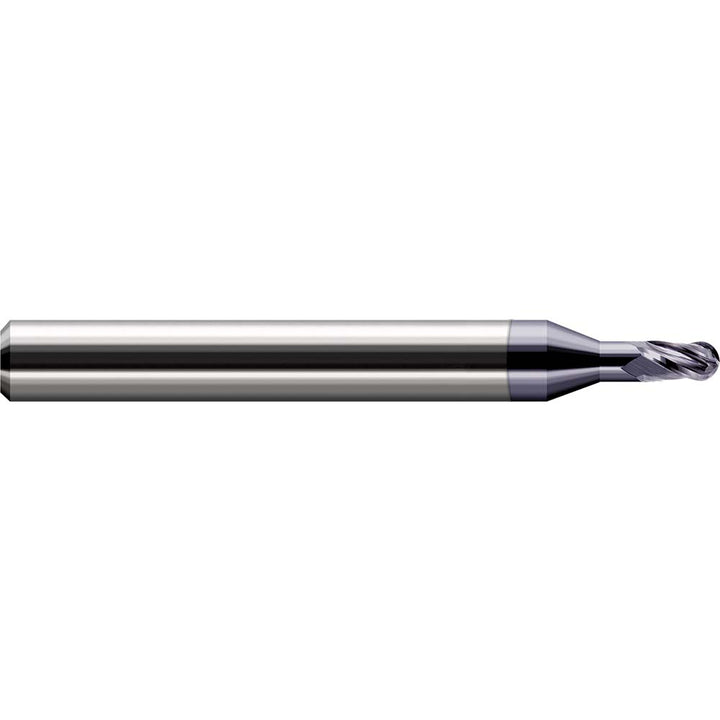

0.0200" 3-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 47920-C3

Harvey Tool

0.0200" 3-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 47920-C3

MFR# 47920-C3Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills

$78.14List $89.65 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 47920-C3 is a 0.0200 3-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 2-1/2 overall length. Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length typeStub
Manufacturers catalog number47920-C3
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter0.0200
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.0300
Nose radius0.0100
Number of flutes3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length0.0600
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
