Harvey Tool

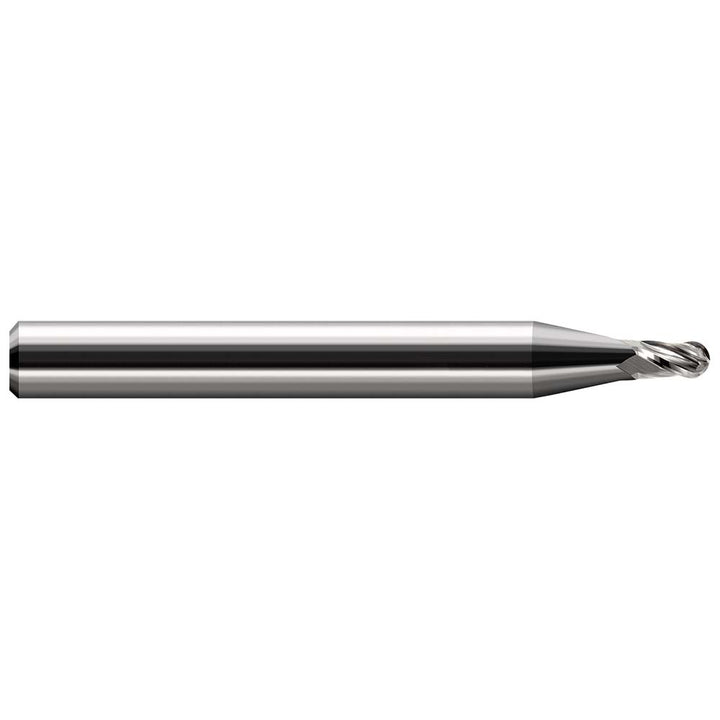

1/4" 4-Flute Solid Carbide Ball End Mill - Harvey Tool 51016
MFR# 51016Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills
$26.73List $28.46
Save 6%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Harvey Tool 51016 is a 1/4 4-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 3/8 length of cut, 2-1/2 overall length. Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length typeStub
Manufacturers catalog number51016
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/4
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.1250
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length in3/8
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
