3/64" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 54447

Harvey Tool

3/64" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 54447

MFR# 54447Series Variable Helix End Mills for Aluminum Alloys - Ball - Long Reach, Stub Flute, Material Specific End Mills

$59.52List $63.34 Save 6%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

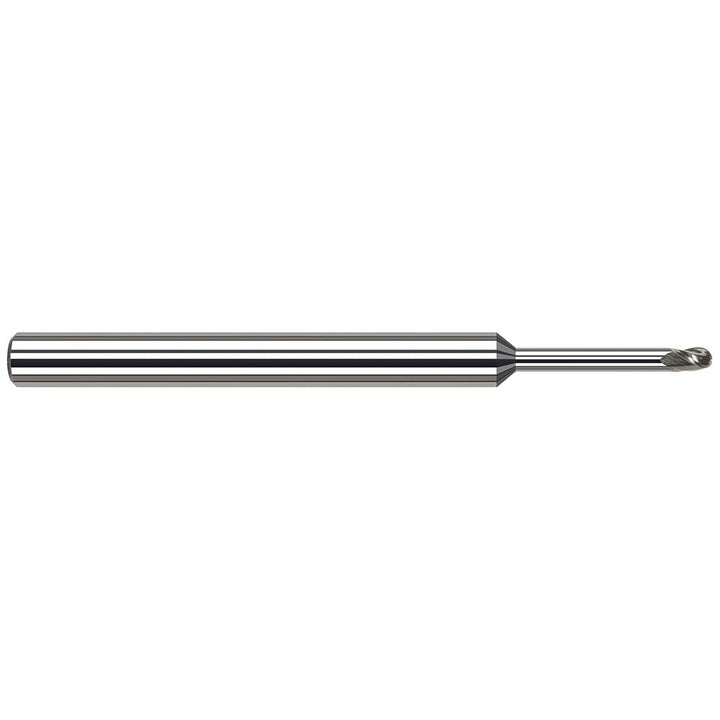

The Harvey Tool 54447 is a 3/64 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 2-1/2 overall length. Series Variable Helix End Mills for Aluminum Alloys - Ball - Long Reach, Stub Flute, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle42
Helix styleVariable
Length typeStub
Manufacturers catalog number54447
Material gradeCarbide
Material removal typeRoughing
Mill diameter in3/64
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.3050
Nose radius0.0235
Number of flutes3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length in3/8
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
