Harvey Tool

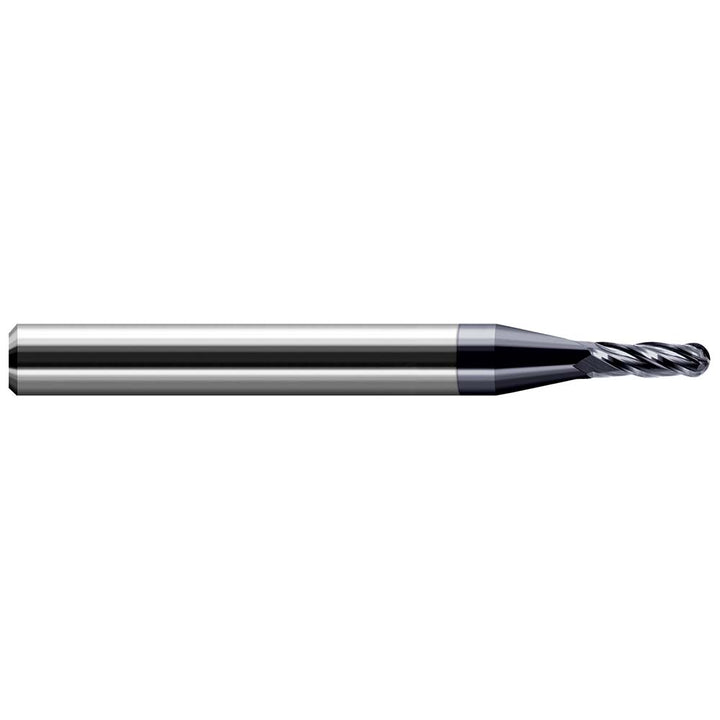

0.04" 2-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 74040-C3
MFR# 74040-C3Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills
$30.77List $32.74
Save 6%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingAlTiN
Description
The Harvey Tool 74040-C3 is a 0.04 2-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/2 overall length. Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills.
Specifications
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length typeStandard
Manufacturers catalog number74040-C3
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter0.04
Mill diameter tolerance+0.0005/-0.0005 in
Nose radius0.0200
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length0.1200
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
