1/16" 6-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 763462-C6

Harvey Tool

1/16" 6-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 763462-C6

MFR# 763462-C6Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills

$67.70List $77.66 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes6
MaterialSolid Carbide
CoatingAlTiN Nano

Description

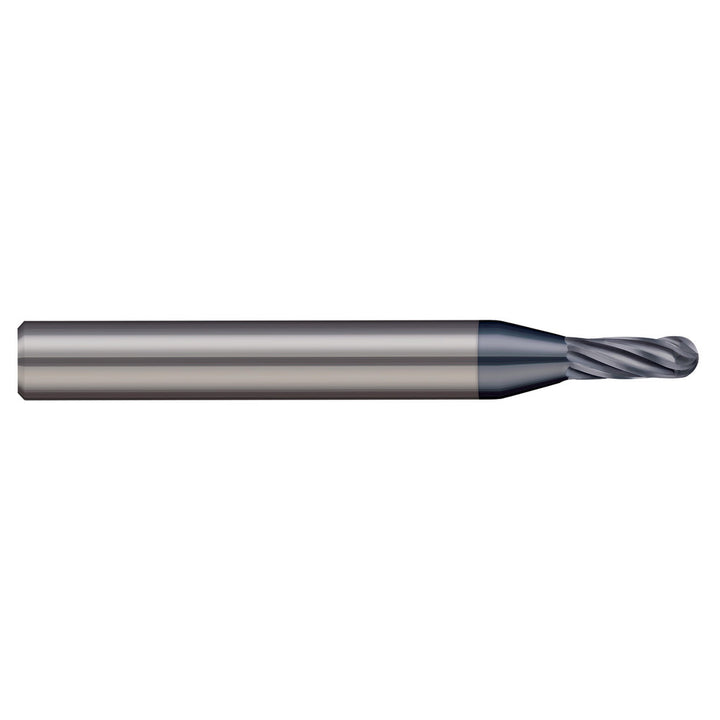

The Harvey Tool 763462-C6 is a 1/16 6-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for hard material. 2-1/2 overall length. Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle20
Helix styleVariable
Length typeStandard
Manufacturers catalog number763462-C6
Material gradeCarbide
Material removal typeRoughing
Mill diameter in1/16
Mill diameter tolerance+0.0005/-0.0005 in
Nose radius0.0310
Number of flutes6
Overall length in2-1/2
Primary workpiece materialHard Material
Reach length0.1860
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixYes
Variable indexNo
